Grahamfield Products

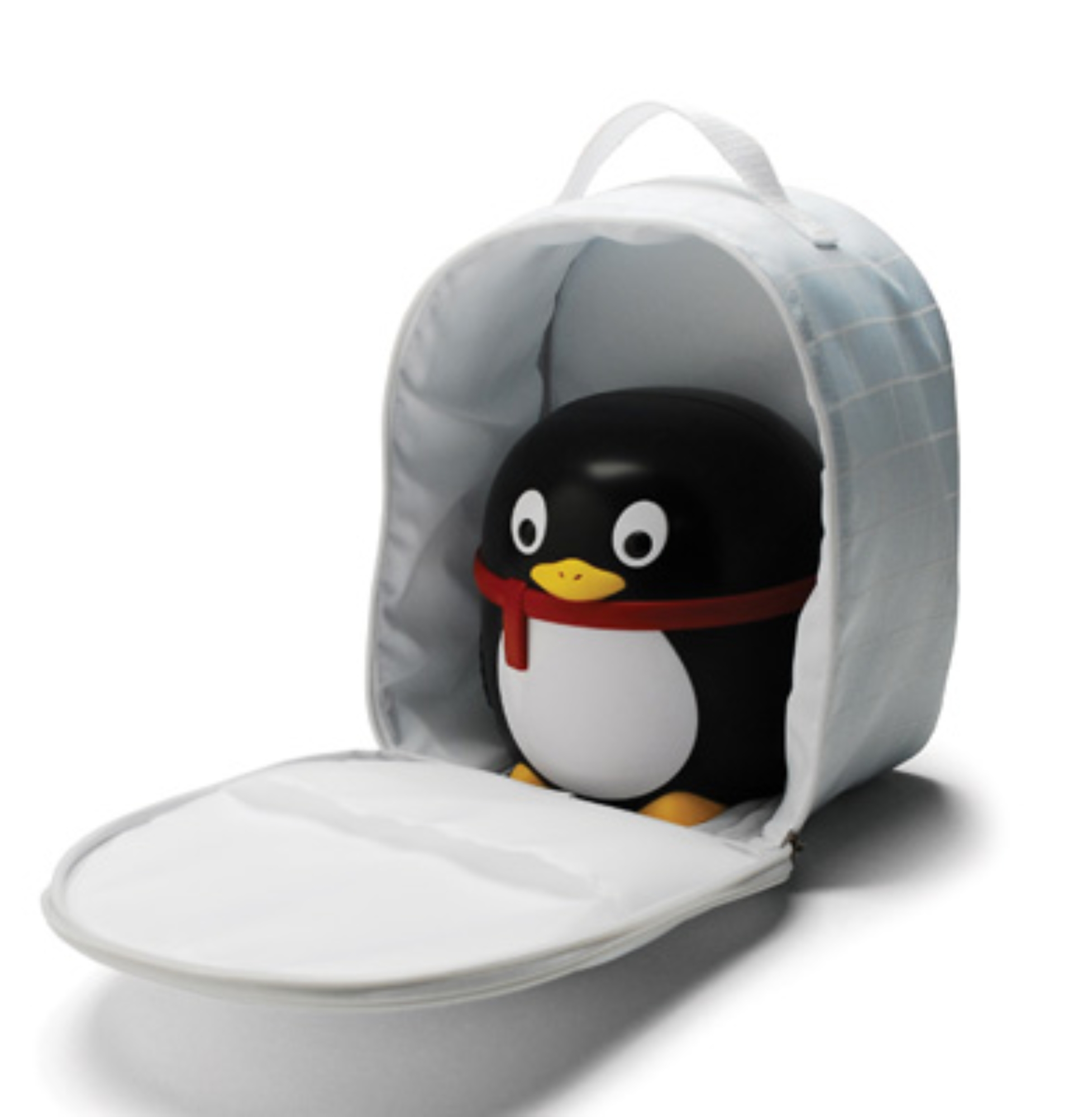

Neb-u-Tyke Penguin Nebulizer Compressor
Neb-u-Tyke Penguin Nebulizer Compressor
PRODUCT DETAILS
• Small footprint and light weight provide exceptional portability
• Compressor weighs only 3.5 lbs
• Reliable, Piston-driven Compressor
• Colorful, Child-Friendly
• 5 year limited warranty
• Designed to meet the requirements of HCPCS Code: E0570
The John Bunn Neb-u-Tyke Penguin Nebulizer comes complete with:
1 reusable nebulizer
1 mouthpiece
1 pediatric mask
1 “T” adapter
1 PVC tubing
3 spare filters
Technical Specifications
| Weight: (Compressor only) | 3.5 lbs. (1.59 kg) |
| Dimensions: (Compressor only) | 6.7″ x 4.8″ x 6.5″ |
| Electrical Requirements: | 115VAC 60Hz |
| Power Wattage: | 68 watts under normal load |
| Ambient operation | |
| Temperature Range: | 41ºF to 104ºF (5ºC to 40ºC) |
| Transport/Storage | |
| Ambient Temperature: | -13ºFto 158ºF (-25ºC to 70ºC) |
| Humidity: | 10% to 90% |
| Method of nebulization | Oiless piston compressor |
| Operating voltage | 115V – 60Hz |
| Class | Class II |
| Current | 1.2A |
| Compressor flow range in liters/min | 0-10 liters / min |
| Compressor pressure range in psi | 0 – 32.5 psi |
| Nebulization Rate in ml/min | 7 liters / min |
| Particle size range in microns | 0.5 – 5 microns |
| Disposable nebulizer capacity in ml | 10 ml |
| Sound level in dBA (if available) | < 58 dB |
