Grahamfield Products

Liberty Bed

NOTE:  Basic American Medical Products beds are for INSTITUTIONAL USE ONLY.  Orders will not be accepted for delivery to a residential address.

NOTE:  Basic American Medical Products beds are for INSTITUTIONAL USE ONLY.  Orders will not be accepted for delivery to a residential address.

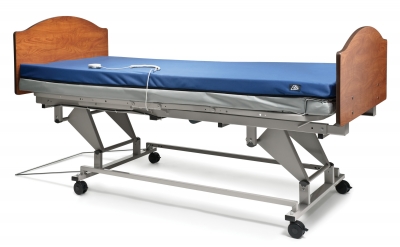

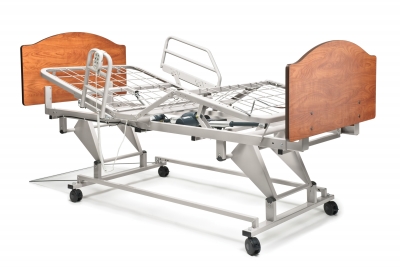

Our newest addition from Basic American, The Liberty Bed provides you with the key features you want at a very affordable price point.

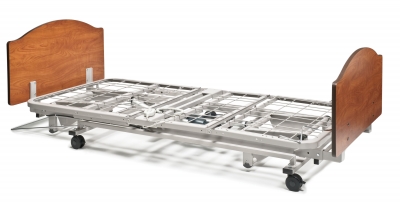

  • Strong supportive grid deck is superior in frame design and offers a “no-sag” mattress support surface. safe work load.
  • Range of motion 9.9 inch to 24.4 inch. With a standard 6” mattress, this positions the bed at an ideal height for the caregiver and for transfers.
  • One bed can be used for 76″ and 80″ lengths using the adjustable brackets to meet space limitations and improve inventory management. No extension kit is necessary.
  • Resident friendly, quiet, smooth operation keeps bed level and balanced at all times using three DC motors.
  • 360 degree mobility at ANY height – can move from room to room at any height, and move over thresholds at even the lowest position.
  • Mattress retainer is standard.
  • Reinforced, robust base is designed for support yet provides sufficient underbed clearance, ideal for using overbed tables and patient lifts.
  • Easy assembly requires only a Phillips head screwdriver.

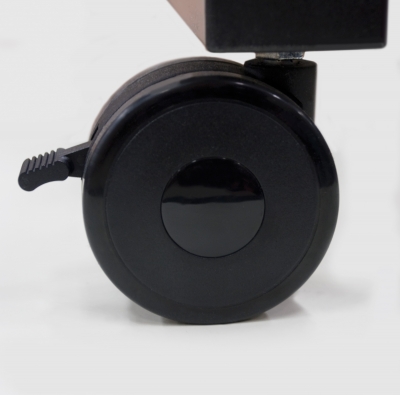

  • Four Locking Casters secure the bed at any height.
  • New keyed Wall Saver is standard – easily moves over thresholds during transport, yet automatically falls back into place to protect your walls. Wallsaver adjusts easily when modifying bed from 76″ to 80″ and when using a trapeze.

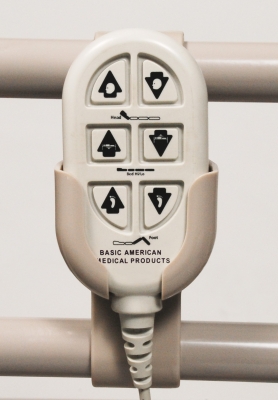

  • Pendant Hand Control – Easy operation contoured Hand Control Pendant is shock-resistant, water-proof and durable. Holster conveniently secures to bedrails and assist devices for easy access.

Highest Safety and Quality Standards
Built to conform to UL 60601-1 and IEC601-2-38, CAN/CSA C22.2 No. 601.1 the Liberty Bed offers the following  ensuring the utmost resident and staff safety:

  • No pinch points within 200mm of bed perimeter
  • Rolling clearance of 20mm over thresholds
  • Splash-proof electronics
  • Load capacity and tip-stability testing

SilverSolutions within the powder-coating provides antimicrobial surface protection

SilverSolutions inhibits the growth of organisms that can detract from the appearance and coating functionality:
• Inhibits the growth of bacterial odors
• Resists stains caused by mildew
• Resists stains caused by mold

SilverSolutions preserves the cured coating during the service life of the bed.

GF Health Products, Inc. makes no independent representations or empirical statements about SilverSolutions. This information is reprinted from: TCI Powder Coatings, EPA Guidance for EPA Registration 40 CFR 152.25

Accessories & Options
Optional Trapeze Adapter and Trapeze attaches easily to headboard to position trapeze within easy reach of residents.

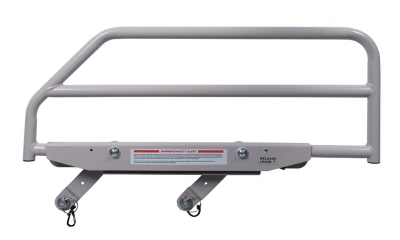

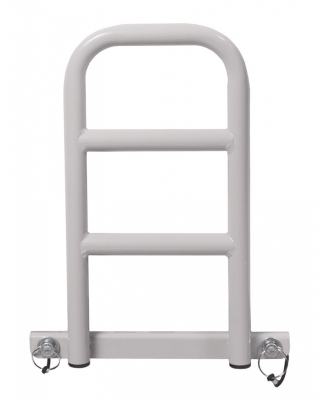

Optional Half Length Assist Device and Assist Bar Half length assist device and assist bar provide a sturdy and secure handhold to assist residents in and out of bed. Assist devices are removable without tools and meet FDA Entrapment Guidelines.

Basic American Liberty Bed Specifications
Additional Features Include:
– Electrostatic powder-coated antimicrobial bed surface provides longer lasting, durable finish

Mattress Deck Length 76″or 80″
Mattress Deck Width 35″
Overall Bed Length 85.5″ with bumper
Overall Bed Width 39.75″ with rails/assist devices
Maximum back angle 70°
Maximum knee angle 30°
Maximum height 24.4″
Minimum height 9.9″
Safe Workload (including resident, support surface, head/foot boards, and accessories) 450 lbs
